2. Modelling


2.3 Editing Objects

Once any of the objects described in section 3.1 have been created, they may be edited at any time. To select an object, either click on it in one of the view windows or in the Object List. To select multiple objects, hold down <shift> while clicking on the relevant objects in the view windows or the Object List or define a marquee selection by holding down the mouse button while dragging the mouse across the required images.


2.3.1 Edit Object

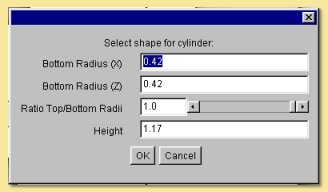

The Edit Object tool is actioned by selecting Object -> Edit Object or by double clicking on the object in the Object List. This tool brings up an object-dependent dialogue box which allows varying amounts of editing. For a sphere or cube primitive, a simple dialogue box allows the scaling in each axis to be altered. For a cylinder or cone object, there is the ability to alter the relative scaling of the base as well as the top/bottom radius ratio and the height.


For curves, spline and triangle meshes, and tubes, the relevant editing window will be displayed as discussed in detail in sections 2.1.2, 2.1.3, 2.1.4 and 2.1.6.


Light editing options are discussed in Chapter 4.

Camera editing options are discussed in Chapter 6.


2.3.2 Object layout

If you select an object and click on Object -> Object Layout, a dialogue like this example will be displayed giving information on the object's position, orientation and scaling.

Any of the shown fields can be altered allowing accurate definition of the object's position, orientation and size. Simply click in the relevant box, type in the new value and click on 'OK' to action the change.



2.3.3 Transforming Objects

Clicking an object and selecting Edit -> Transform Object allows the object to be translated, rotated or scaled by a user-defined distance, angle or factor respectively. The following dialogue box is displayed:


By default, transformations are also performed on children of the selected object and this can be turned off from this dialogue box. It is also possible to perform the rotation of a collection of objects as if they were separate objects (i.e. around Individual Object Centres) or, by default, around the centre of the collection.



Transformations can also be made using the icons on the left of the main screen layout.

is object translation. Simply click on the icon and drag the object in any of the viewports.  Double-clicking brings up a dialogue box to switch off/on translation of non-selected children objects.

is object rotation. Again click once on the icon and drag over the object to rotate it. The rotation can be constrained to a particular axis by dragging the appropriate handle instead. Double-clicking brings up a dialogue box to switch off/on translation of non-selected children objects and to change the rotation centre.

is object scaling. Clicking on this and then dragging a handle scales in the appropriate axis. Pressing <shift> while dragging maintains the relative dimensions of the object, while pressing <ctrl> keeps the centre of the object fixed. Both can be pressed simultaneously to maintain shape and centre. Double clicking brings up a dialogue box to switch off/on translation of non-selected children objects and allows for the centres of objects to remain fixed or to move in relation to the scaling.


Fine editing of object translation and rotation can also be achieved using the arrow keys. The currently selected object(s) will be moved/rotated according to the arrow key pressed and the currently selected view window.


2.3.4 Align Objects

This option from the Object menu allows selected objects to be aligned with each other. The dialogue box looks like this:

Objects can be aligned in any axis and with respect to their front, centre, back or origin. In addition the objects can be positioned at any particular point along the axis by entering a value in the 'align to' box. For example, selecting Z centre align to 2 will move the centres of all selected objects to Z=2 as below:



2.3.5 Rename Object

New objects in Art of Illusion are given a generic name based on the type of object. Copied objects retain the name of the original object. In either case, it becomes far easier to give the objects a meaningful name. This is achieved by simply clicking on the object and selecting Object -> Rename Object.




2.3.6 Copying Objects

Any object can be copied including cameras and lights. The Cut, Copy and Paste commands are to be found on the Edit menu. These commands work in the same way as many other programs in that Cut and Copy both make a copy of all selected objects in the clipboard which can then be Pasted to produce an identical copy in the scene. Cut results in the original object being deleted. Objects can also be copied from one scene to another scene in the same way.

In addition to these commands, there is a special copying command Edit -> Make Live Duplicates. This produces an identical copy of all selected objects in the same way as Copy but this time the new object is linked to the original so that all future changes made to any of the linked objects are automatically applied to all 'live' duplicates. If and when you want this relationship to stop, select the copy and click on Edit -> Sever Duplicates.
